產品特點 | Feature

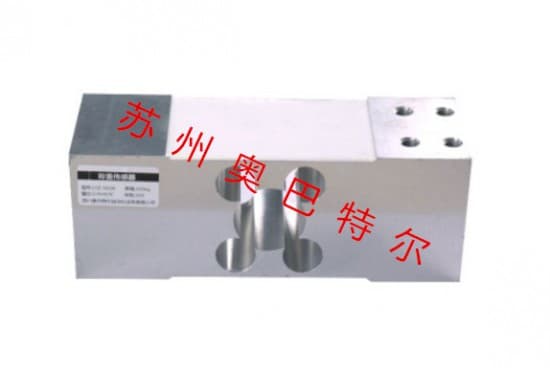

Single point load cell
Senior aluminun
Easy to install, high accuracy, high stabilit
Protected against corrosion by nickelplated treatment, high protection class
Suitable for belt scales, package systems, small hopper scales, bench scales, etc
單點式
優(yōu)質鋁合金材質
安裝簡便、快速，高精度，高穩(wěn)定性
表層鍍鎳防腐處理， 高保護等級
適用于皮帶秤、包裝秤、小型料斗秤、臺秤等
量程 | Capacities
60kg, 100kg, 150kg, 200kg,250kg, 300kg, 500kg
客戶可以根據自己需求定制量程。
技術參數 | Specification
|
Rated Output |
額定輸出 |
1.0-2.0mv/v±1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕變 |
±0.03% of rated output |
|
Nonlinearity |
非線性 |
±0.03% of rated output |
|
Hysteresis |
滯后 |
±0.03% of rated output |
|
Repeatability |
重復性 |
±0.03% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.002% of applied output/℃ |
|
Temp. Effect on zero |
零點溫漂 |
≤0.002% of rated output/℃ |
|
Safe temp. Range |
可用溫度范圍 |
-10℃ to+70℃ |
|
Temp.Compensated |
溫度補償范圍 |
-10℃ to+40℃ |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
450 Ω±10Ω |
|
Output Impedance |
輸出阻抗 |
350 Ω±5Ω |
|
Insulation Resistance |
絕緣阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
9-12VDC |
|
Protection Class |
防護等級 |
IP65 |
|
Construction |
電線 |
150mm |
|
type |
型號說明 |
?型號+‚量程+ƒ非標功能F(無非標則不需填寫) 如：LSZ-S62/3kg |
|
Cable Color Code |
導線顏色 |
Red(+E)Black(-E)Green(+S)White(-S) |
 |
 |
 |
 |
 |
 |
 |
 |
 |
