產品特點 | Feature
扭矩傳感器
用于靜態，非連續旋轉的扭矩力值測量。被廣泛應用于試驗機，禁止扭矩檢測等測試系統中，由于出色的穩定性及較高的測量精度而受到用戶的贊譽

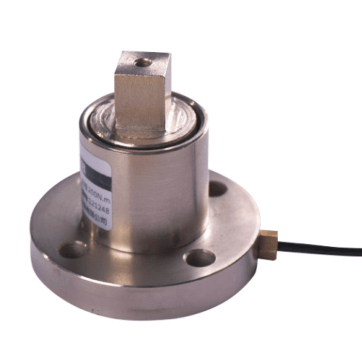

MRN-S01 Torque Sensor
Apply to static, non-continuous rotation of the torgue force values measured
量程 | Capacities
1,2,5,10,20,50,100,200,300,3000N.m
客戶可以根據自己需求定制量程。
技術參數 | Specification
|
Rated Output |
額定輸出 |
2.0mv/v±1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕變 |
±0.03% of rated output |
|
Nonlinearity |
非線性 |
±0.03% of rated output |
|
Hysteresis |
滯后 |
±0.03% of rated output |
|
Repeatability |
重復性 |
±0.03% of rated output |
|
Temp. Effect on output |
靈敏度溫漂 |
≤0.02% of applied output/℃ |
|
Temp. Effect on zero |
零點溫漂 |
≤0.02% of rated output/℃ |
|
Safe temp. Range |
可用溫度范圍 |
-10℃ to +70℃ |
|
Temp. Compensated |
溫度補償范圍 |
-10℃ to +40℃ |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387Ω±20Ω |
|
Output Impedance |
輸出阻抗 |
350Ω±5Ω |
|
Insulation resistance |
絕緣阻抗 |
≥5000MΩ（50V DC） |
|
Rated Excitation |
推薦激勵電壓 |
5V DC/AC |
|
Maximim Excitation |
最大工作電壓 |
10V DC/AC |
|
Construction |
電線 |
2m |
|
Type |
型號說明 |
①型號+②量程+③非標功能F 如：MRN-S01/1N.m |
|
Cable Color Code |
導線顏色 |
Red (+E) Black (-E) Green (+S) White (-S) |
 |
 |
 |
 |
 |
 |
 |
 |
 |
